TMS320DM642 PCI Driver

Description

The DM642 pci driver is a simple but effective general purpose, policy-free driver for developers.This development package provides a complete Host-side driver(linux 2.6), a Dsp-side DSP/BIOS PCI IOM mini-driver and some examples for the TMS320DM642 chipset family from Texas Instruments.

+---linux

| +---driver
| \---apps

| +---dspload
| \---samples

| +----mmap_loop.c

| +----rw_loop.c

| ...
\---target

+---iom_driver
+---sync_pci

Features

Linux applications communicate with DSP tasks through device files,data transfer use DMA.
Default debug channel support DSP tasks print message to host side.
Support mmap system call to ensure maximum data throughput.
All DSP memory space accessable through main device.

Load coff format DSP side apps directly from user space.
Multiple board support.

Installation

1. get the source

cvs -d:pserver:anonymous@dm642-pci.cvs.sourceforge.net:/cvsroot/dm642-pci login
cvs -z3 -d:pserver:anonymous@dm642-pci.cvs.sourceforge.net:/cvsroot/dm642-pci co -P dm642_pci

Browse CVS Repository

2. build and install the driver

the driver is successfully build under Linux version 2.6.15-1.2054_FC5.

cd linux/driver

make

./dm642_load (load the dm642_pci.ko module and create correspondence devices, adapt from LDD3 examples)

3. build and run the examples

cd linux/apps/dspload

make

./dspload ../../../target/sync_pci/sync_pci.out (load the dsp side app)

cd linux/samples

make

./rw_loop 30000 1
read/write test: bufsize=30000, loopcnt=1, dev_name=/dev/dm642_pci1
io time(us): avg = 5739, min = 5739, max = 5739, last = 5739

dmesg (use dmesg see DSP-side app print output and driver's printk. another method: killall klogd; cat /proc/kmsg)

<7>dm642_interrupt: write spend time(us): 005304 CPU cycles: 12706366
<7>dm642_interrupt: read spend time(us): 005486 CPU cycles: 13142106
<4>DSP loop_tsk(1/4): can accept max TRANSFER_COUNT is 32760
<4>DSP loop_tsk(0/4): can accept max TRANSFER_COUNT is 32760
<4>DSP read_tsk(3/4): can accept max TRANSFER_COUNT is 32760
<4>DSP write_tsk(2/4): can accept max TRANSFER_COUNT is 32760
<4>DSP DMA READ(0e810000 -> 00000768 30000) time(DSP cycles): 3172568
<4>DSP DMA WRITE(00000768 -> 0e568000 30000) time(DSP cycles): 138400

./dspload ../../../target/sync_pci/sync_pci.out

./mmap_loop 30000 1
mmap test: bufsize=30000, loopcnt=1, dev_name=/dev/dm642_pci1
0: 00018000 -> b7f6b000
1: 00020000 -> b7f5b000
2: 00028000 -> b7f53000
bufs for write: 3
0: 00000000 -> b7f4b000
1: 00008000 -> b7f43000
2: 00010000 -> b7f3b000
bufs for read: 3
io time(us): avg = 5618, min = 5618, max = 5618, last = 5618

dmesg
<7>dm642_interrupt: write spend time(us): 005287 CPU cycles: 12662902
<7>dm642_interrupt: read spend time(us): 005618 CPU cycles: 13456524
<4>DSP loop_tsk(1/4): can accept max TRANSFER_COUNT is 32760
<4>DSP loop_tsk(0/4): can accept max TRANSFER_COUNT is 32760
<4>DSP read_tsk(3/4): can accept max TRANSFER_COUNT is 32760
<4>DSP write_tsk(2/4): can accept max TRANSFER_COUNT is 32760
<4>DSP DMA READ(0e810000 -> 00000768 30000) time(DSP cycles): 3162064
<4>DSP DMA WRITE(00000768 -> 0f210000 30000) time(DSP cycles): 138360

./dspload ../../../target/sync_pci/sync_pci.out

./read_3 30000 3
read/write test: bufsize=30000, loopcnt=3, dev_name=/dev/dm642_pci3
0 hello,world!
1 hello,world!
2 hello,world!
io time(us): avg = 347, min = 318, max = 397, last = 318

cat /proc/kmsg (run on another terminal, before run ./read_3 30000 3)
<7>dm642_interrupt: read spend time(us): 000246 CPU cycles: 591636
<4>DSP loop_tsk(1/4): can accept max TRANSFER_COUNT is 32760
<4>DSP loop_tsk(0/4): can accept max TRANSFER_COUNT is 32760
<4>DSP read_tsk(3/4): can accept max TRANSFER_COUNT is 32760
<4>DSP write_tsk(2/4): can accept max TRANSFER_COUNT is 32760
<4>DSP DMA WRITE(00000768 -> 0e430000 30000) time(DSP cycles): 138944
<7>dm642_interrupt: read spend time(us): 000246 CPU cycles: 590448
<4>DSP DMA WRITE(00000768 -> 09f18000 30000) time(DSP cycles): 138824
<7>dm642_interrupt: read spend time(us): 000243 CPU cycles: 585482
<4>DSP DMA WRITE(00000768 -> 0a658000 30000) time(DSP cycles): 137888

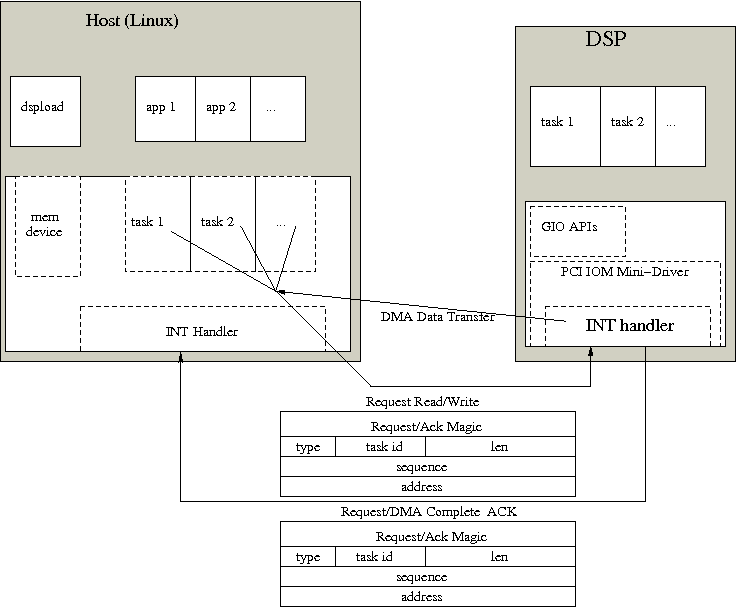

The Design of the driver

Profiling

"dma time"(DMA complete - DMA start) is counted on DSP side use TIMER COUNT REGISTER(unit CPU cycles/8) DM642 is runing at 600MHz. the examples list above have multiplied by 8.

"request time"(from the request time to received request complete ack) is counted on Host side use get_cycles/rdtscl, CPU is running at 2.4GHz.

"user time"(before read call to read call end) is counted on Host side use gettimeofday.
